01.

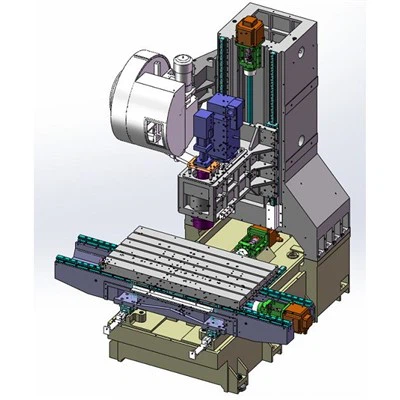

The TMC-540L is a compact yet rigid cnc drilling tapping center developed for continuous high-speed drilling and tapping tasks on small non-ferrous components. Its structural design emphasizes balance and responsiveness, combining a reinforced base with a herringbone-style column to maintain stability during rapid axis movement.

Lightweight moving parts-including the table, saddle, and spindle box-reduce inertia, allowing the cnc drilling tapping center to achieve faster acceleration and deceleration. High-speed ball screws and a direct-drive spindle work together to ensure smooth motion and precise hole positioning, even in high-frequency tapping cycles.

02.

Positioned as an entry-level high-speed solution, the TMC-540L cnc drilling tapping center is widely used in communications hardware, electronic housings, and precision mechanical parts where efficiency and repeatability are critical.

Technical Specification

Item	Unit	TMC-540L
X/Y/Z Axis Travel	mm	500/400/350
Worktable Area	mm	600X400
Worktable Load Capacity	kg	200
Distance from Spindle Nose to Worktable	mm	170-520
Positioning Accuracy	mm	0.01
Repeat Positioning Accuracy	mm	±0.003
Maximum Spindle Speed	rpm	Direct Drive 20000
Spindle Taper	-	BT30
Spindle Motor Power	kw	3.7-5.5
3-Axis Motor Power	kw	1.5/1.5/3.0
3-Axis Rapid Traverse Speed	m/min	48/48/48
3-Axis Cutting Feed Rate	mm/min	1-10000
ATC Tool Specification	-	BT30
Tool Magazine Type & Capacity	pcs	Servo 21T
Tool Change Time	s	1.8
Air Pressure Requirement	kg/cm²	6-6.5
Required Power Capacity	kva	15
Machine Overall Dimension (LengthXWidth)	mm	2000X1970
Machine Height	mm	2300
Machine Weight (Approx.)	kg	2500
