Key Features & Advantages
5-Axis Machining
Supports complex surfaces, multi-angle features, and irregular structural parts, enabling multi-side machining in one setup.
01
High-Speed Spindle
Maximum spindle speed: 20000 rpm, suitable for high-speed precision machining of complex parts.
02
Rotary Table
The B/C-axis rotary table is well suited to complex surfaces and multi-angle contour machining.
03
Rapid Traverse
X/Y/Z rapid traverse: 48/48/48 m/min, helping improve overall cycle time when machining complex parts.
04
Tool Change System
A 24T tool magazine supports continuous multi-process machining of complex parts.
05
Applications
Complex Curved-Surface Parts Machining
Impellers and Blades Machining
Propellers Machining
Rotor Parts Machining
Complex Mold Machining
Precision Machining of Irregular Structural Parts
Machinable Materials
Aluminum Alloy
Stainless Steel
Titanium Alloy
Tool Steel
Engineering Plastics
Manufacturing Capability
In-house machining and assembly
Precision inspection with CMM (coordinate measuring machine) and laser interferometer
ERP-based production process management
Complete machine manufacturing capability
After-Sales Service
One-year warranty for the complete machine and CNC system
Remote technical support within 4 hours
On-site service within 48 hours when required
Includes installation, commissioning, and operator training
Delivery & Terms
Lead time: 30-60 days
Installation support available
Custom configurations available
Honor and qualification

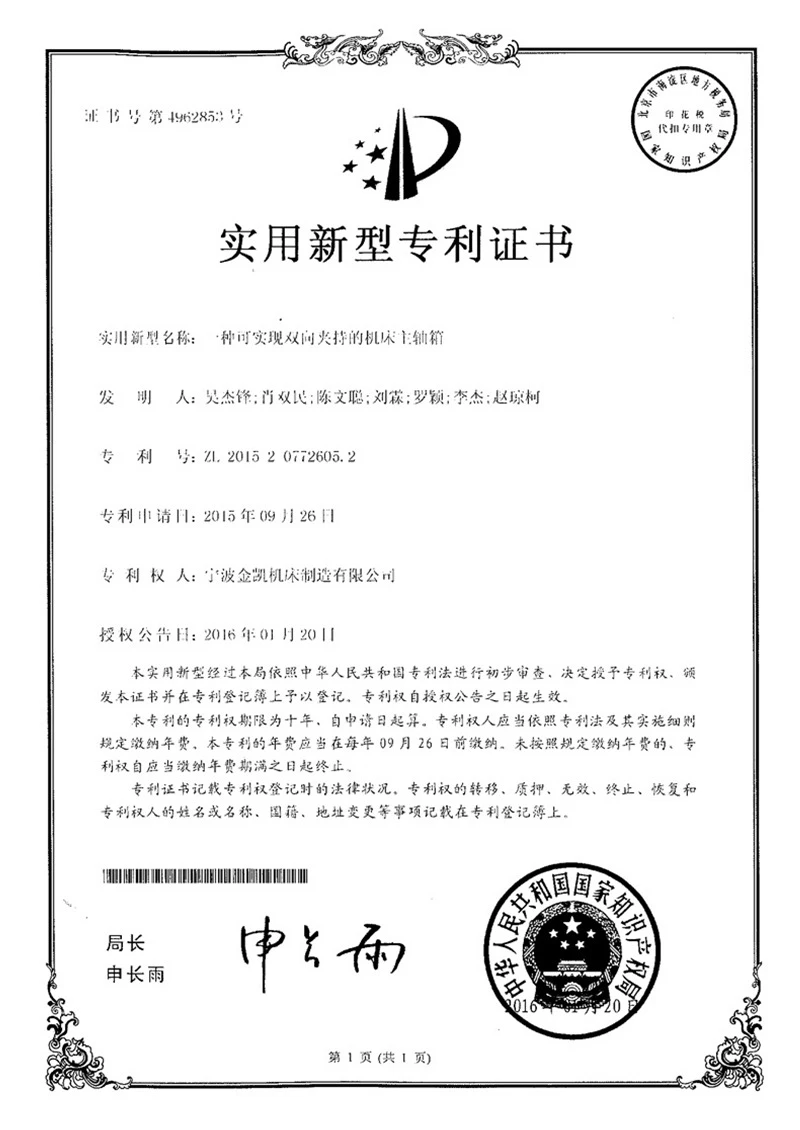

Utility Model Patent Certificate

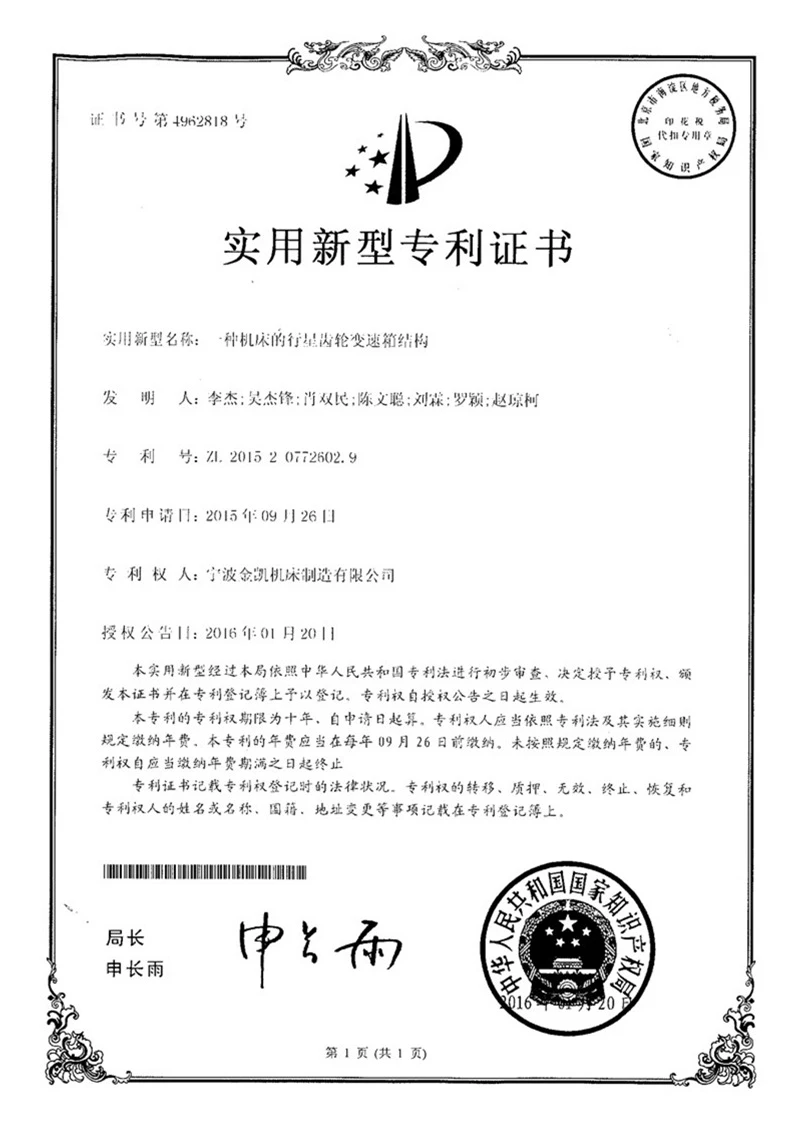

Utility Model Patent Certificate
Utility Model Patent Certificate

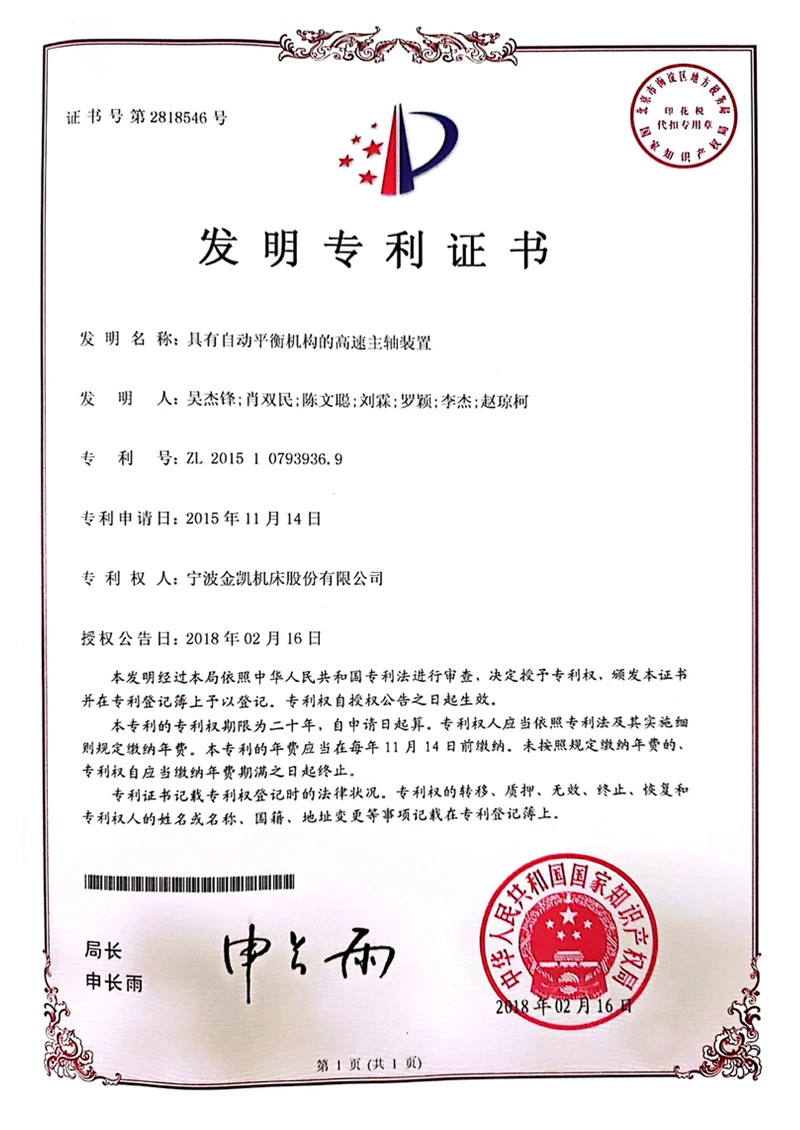

Invention Patent Certificate
Invention Patent Certificate
Technical Specification
|
Item |
Unit |
5 Axis Machining for Complex Parts |
|
X-Axis Travel (Saddle Left-Right Movement) |
mm |
810 |
|
Y-Axis Travel (Column Front-Back Movement) |
mm |
520 |
|
Z-Axis Travel (Spindle Box Up-Down Movement) |
mm |
450 |
|
Distance from Worktable Surface to Spindle End Face |
mm |
150-600 |
|
Worktable Size |
mm |
Φ650 |
|
Worktable Load Capacity |
kg |
300 |
|
Worktable Speed (Tilt Axis B-Axis) |
rpm |
50 |
|
Worktable Speed (Rotary Axis C-Axis) |
rpm |
150 |
|
Maximum Cutting Speed |
- |
1-20000 |
|
Rapid Traverse Speed X/Y/Z |
m/min |
48/48/48 |
|
Drive Mode |
- |
Direct Drive |
|
Maximum Spindle Speed |
- |
20000 |
|
Spindle Power |
rpm |
9.0/13 (1PH8107) |
|
Spindle Taper Hole |
kw |
BT40 |
|
Tool Magazine Capacity |
mm |
24T |
|
Tool Holder Type |
- |
BT40 |
|
Maximum Tool Diameter (Full Tool / Empty Station) |
mm |
80/150 |
|
Maximum Tool Length |
mm |
300 |
|
Maximum Tool Weight |
kg |
8 |
|
Total Power Capacity |
KVA |
50 |
|
Machine Overall Dimensions |
mm |
3050×3150×2900 |
|
Machine Weight (Approx.) |
kg |
9000 |
